ASME SB163 N04400 G-Type Embedded Finned Tubes High Efficiency Solution for Air Cooler Heat Exchangers

Name: ASME SB163 N04400 GType Embedded Finned Tubes High Efficiency Solution for Air Cooler Heat Exchangers
Brand: Yuhong
Price: 1 USD

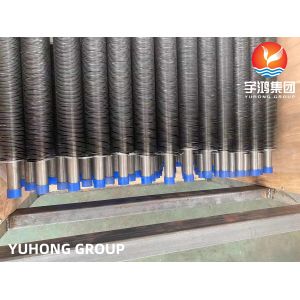

Cheap ASME SB163 N04400 G-Type Embedded Finned Tubes High Efficiency Solution for Air Cooler Heat Exchangers for sale

Brand Name : Yuhong

Model Number : ASME SB163 N04400 G-Type Embedded

Certification : ABS, BV, DNV, CCS, LR

Place of Origin : China

MOQ : 100 KGS

Price : Negotiable

Payment Terms : TT, LC

Supply Ability : 4150 Ton Per Month

Delivery Time : 20-80 days

Packaging Details : Plywooden case with Iron Frame

Product name : Embedded Finned Tube

Type : G-Type

Application : Heat Exchangers, Air Coolers, Condensers, Evaporators, Radiators

Material : Aluminium, Carbon Steel, Copper Stainless Steel, carbon steel / stainless steel / copper, carbon steel pipe with aluminium spiral fin

Tube Material Grade : TP304, 316L, 321, SA179, T5, T9, T11, T12, T22

Fin Spacing : 2.0mm-20mm

Wall Thickness : 0.84mm

Tube Diameter : 15mm, 19mm, 25mm, 32mm, 38mm, 42mm

Contact Now

ASME SB163 N04400 G-Type Embedded Finned Tubes: High - Efficiency Solution for Air Cooler Heat Exchangers

Product Introduction: ASME SB163 N04400 G - Type Embedded Finned Tubes

1. Product Material & Chemical Composition

The base tube material is N04400 (Monel 400), and fins are made of aluminum. The chemical composition of N04400 meets ASME SB163 standards, with key elements as follows:

Element	Cu	Ni	Fe	Mn	C	Si	S
% Max	28-34	63-70	2.0 max	2.0 max	0.3 max	0.5 max	0.01 max

2. Performance & Mechanical Properties

Thermal Performance: The embedded AL fins significantly enhance heat transfer efficiency. For air cooler heat exchangers, it can improve the heat exchange rate by up to 30% compared to ordinary finned tubes in similar working conditions.
Mechanical Properties: The base tube has a tensile strength of 550 - 750 MPa, yield strength ≥ 240 MPa, and elongation ≥ 30%. The fin - tube combination ensures good resistance to vibration and pressure in air cooler operations.

Property	Value
Tensile Strength	550-750 MPa
Yield Strength	≥240 MPa
Elongation	≥30%

Aluminum Fin Properties:

Parameter	Value
Fin Height	8-16mm
Fin Thickness	0.4-0.8mm
Fin Density	7-14 FPI
Thermal Conductivity	≥200 W/m·K

3. Processing Technology

Our G - type embedded finned tubes adopt an advanced embedding process. First, precise grooves are machined on the N04400 base tube. Then, aluminum fins are firmly embedded into these grooves, followed by strict quality inspection. This process ensures strong fin - tube bonding, excellent heat transfer, and long - term stability.

4. Application Scenarios

Ideal for air cooler heat exchangers in industries like petrochemical, power generation, and refrigeration. It can efficiently cool or condense media such as process gases, steam, and refrigerants, ensuring stable operation of industrial systems.

5. Product Advantages

High Efficiency: Optimized fin structure and material combination for superior heat transfer.
Durability: High - strength base material and reliable fin - embedding process for long service life.
Corrosion Resistance: N04400 base tube resists corrosion in harsh environments, and aluminum fins are suitable for air - side conditions.

6. FAQ

Q: Can these tubes be customized for specific projects?
A: Yes. We offer customization in terms of size, fin density, and material grades to meet diverse customer needs.
Q: What is the service life of these finned tubes?
A: Under normal operating conditions in air coolers, the service life can reach over 10 years, depending on the specific working environment.

Yuhong Holding Group Co., Ltd, with 20 years of export experience, has been serving customers in 80 countries. As one of the top 5 Chinese enterprises in finned tube exports, we boast 55 production lines, over 110 employees, and a 20,000 - square - meter factory. Equipped with state - of - the - art technology and facilities, we are committed to delivering top - notch finned tube products and services. Visit us at www.steelfintube.com, contact us via jimmy@steelseamlesspipe.com or WhatsApp (+86 18892647377).

Choose Yuhong for Quality

Yuhong Holding Group Co., Ltd combines 20 years of expertise, advanced production, and strict quality control. Our ASME SB163 N04400 G - type embedded finned tubes are a testament to our commitment to providing high - performance solutions for heat exchange. Reach out to us today to enhance your air cooler heat exchanger efficiency!
